ROOF LOAD MONITORING
Safety on the roof
Snow issue
The beautiful winter time, when snow and ice become a danger and often have costly consequences ...
Snow load
This is how heavy your roof can get...
Snow load on a 75 m² flat roof of a single-family house at a snow depth of 10 cm.
|
Powder snow |
375 kg |
|
5 kg/m² |
|
Wet snow |
2'625 kg |
|
35 kg/m² |
|
Old snow |
3'375 kg |
|
45 kg/m² |
|
Ice layer |
6'750 kg |
|
90 kg/m² |
|
Water layer |
7'500 kg |
|
100 kg/m² |
The "3-step" solution
It is important that you acquire a measuring system that lets you sleep peacefully and only informs you when a limit value has been exceeded.
A monitoring system under or up on the roof?
Power supply from the grid or from a solar generator?
Data access via the Internet or your own control system?
We will be happy to advise you!
Mini-station for autonomous monitoring applications.

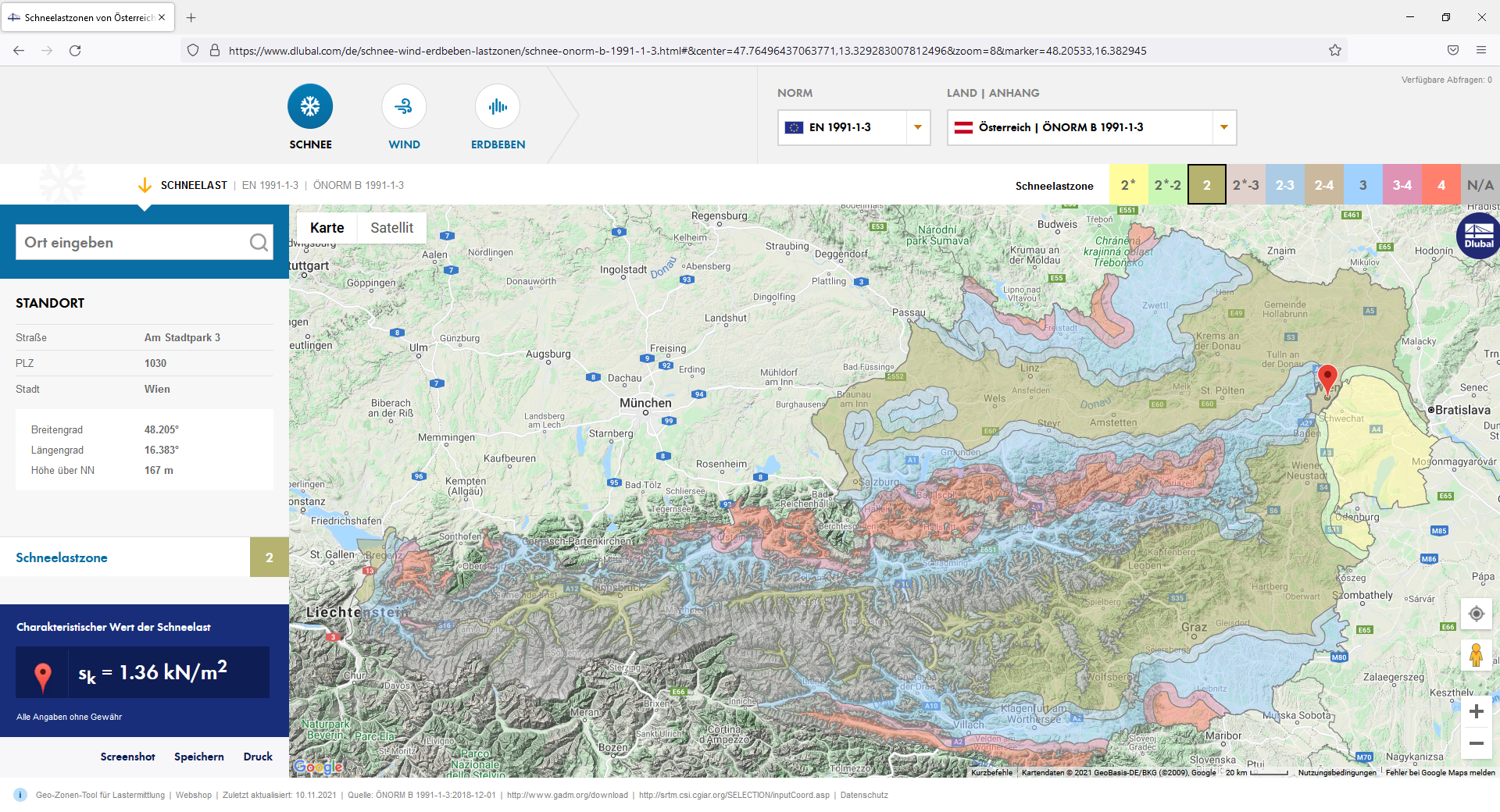

You can find out which limit values are permissible for you here.

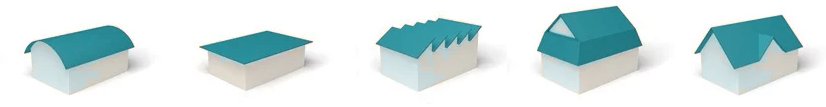

No matter what shape of roof your building has - we have a professional solution for you.
Step 1
Together we find out if the snow load can be determined on top or underneath the roof. After that, we will prepare a customized offer for you.
|
|
|
Step 2
As soon as you place the order for the selected system, we will manufacture it ready for connection for you and ship it to you.
Step 3
You can choose whether you set up the system yourself or we take care of the installation, including trial weighing and commissioning.
The options
SSG-2S
|
SSG-2
|
LME-10
|
Important
The building designs are as diverse as the measurement options we can offer. We will be glad to help you choose the right system. Just get in touch with us.
Our basic model for the professional league

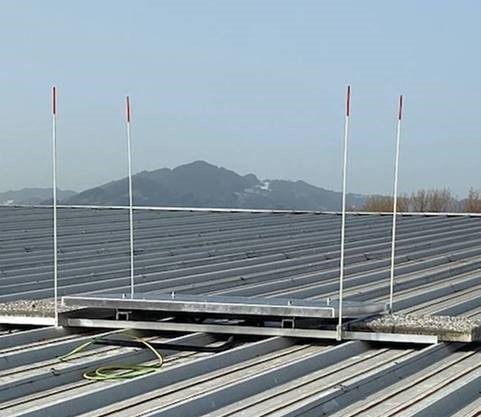

SSG-2S
The little sister of the SSG-2 is used wherever space is limited or the measuring system has to be adapted to the roof shape.
Features
Compact (1200x800mm)
Easy self assembly possible
4-fold intrinsically safe
Limit monitoring
SMS, E-Mail, Voice-Call (optional)
Many options through modular design
To learn more about this product, visit our product website.
When space on the roof is not an issue

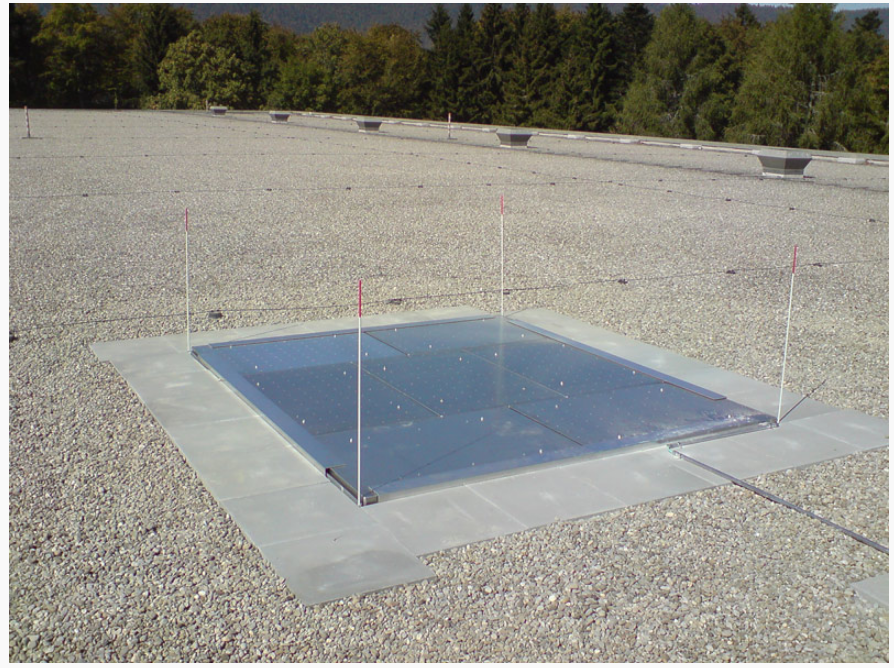

SSG-2
In use worldwide for over 10 years - equipped with special levelling plates that ensure a homogeneous layer of snow and easy assembly on the roof.
Features
Easy self assembly possible
4-fold intrinsically safe
Formation of snow bridges is minimized
Weather resistant (suitable for alpine conditions)
Limit monitoring
SMS, E-Mail, Voice-Call (optional)
Many options through modular design
To learn more about this product, visit our product website.

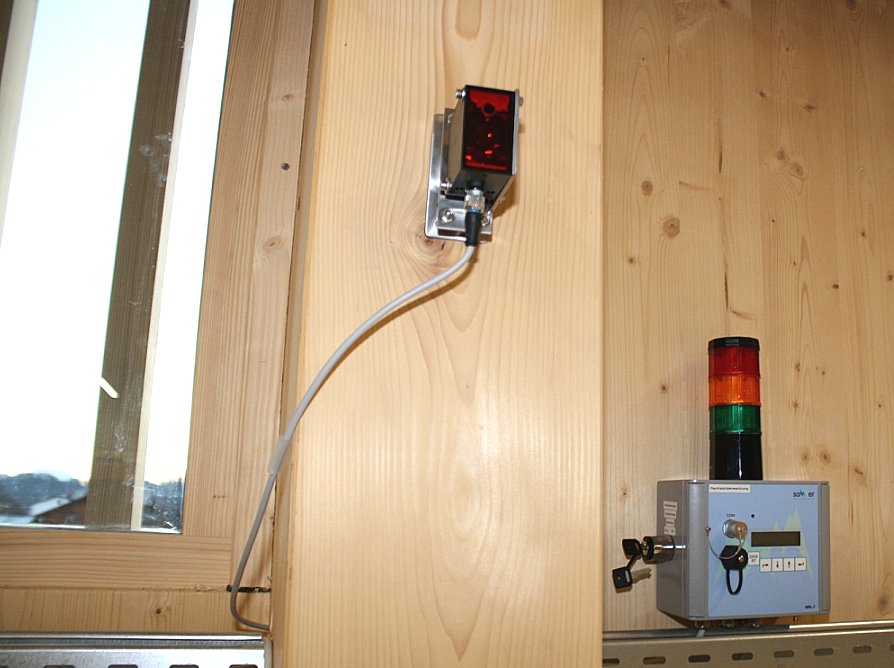

Total load measurement and fatigue detection with laser
You do not only want to measure the snow load but also monitor the stress caused by ponding water and other roof loads? Then we recommend our laser measurement system.
Features
Maintenance-free sensor technology
Easy self assembly possible
Up to 4 measurement points
Limit monitoring
Integrated SMS andE-Mail
Many options through modular design
To learn more about this product, visit our product website.
Online limit monitoring
All monitoring devices can be equipped with an information management and notification system.
